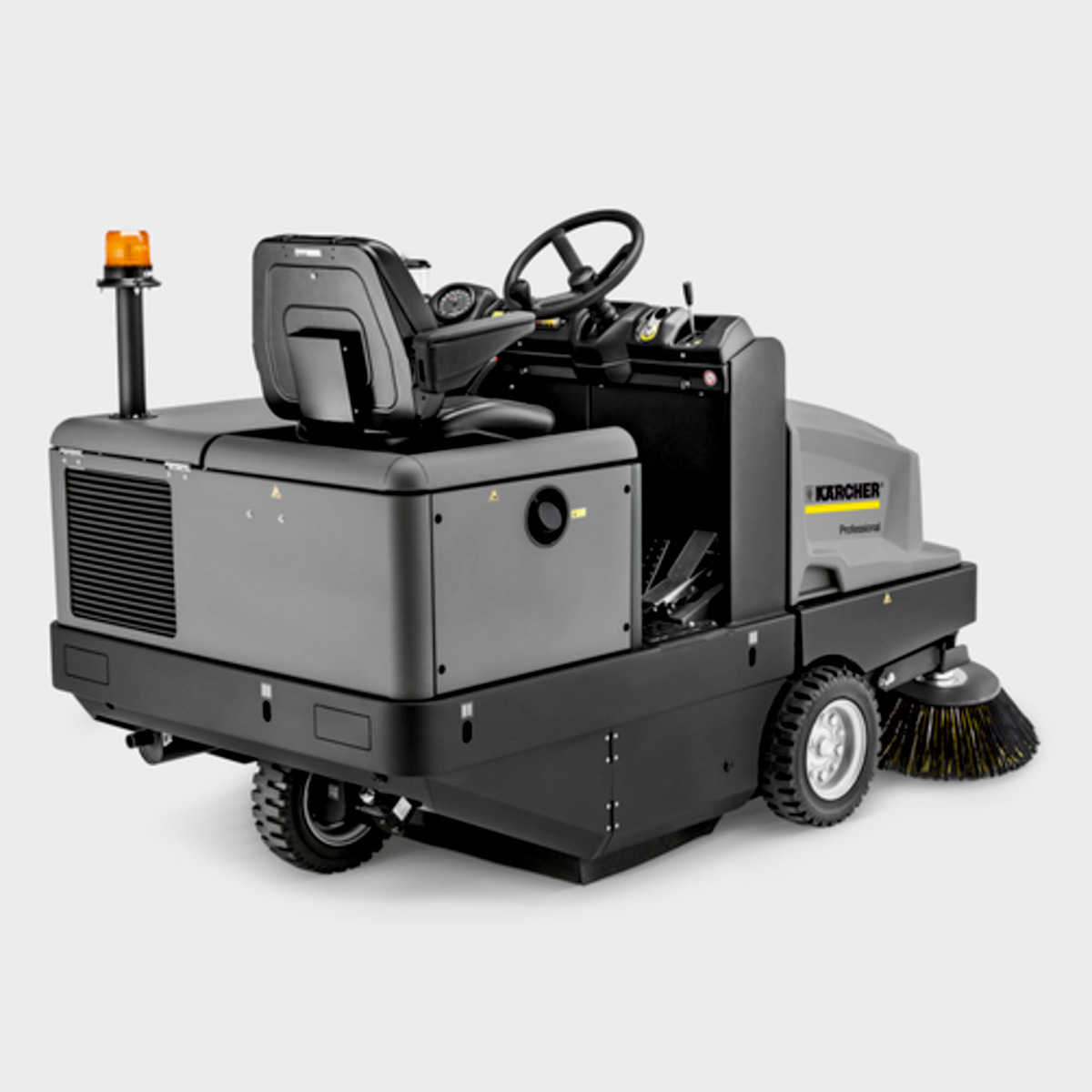

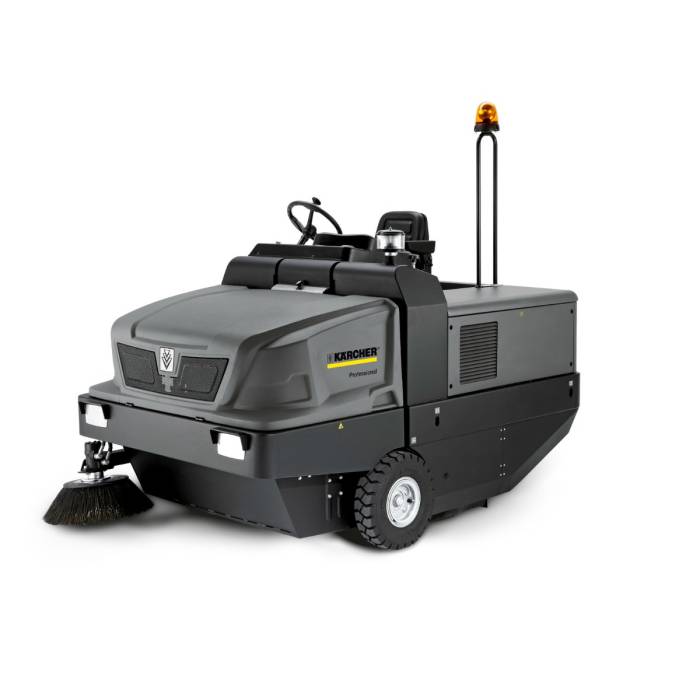

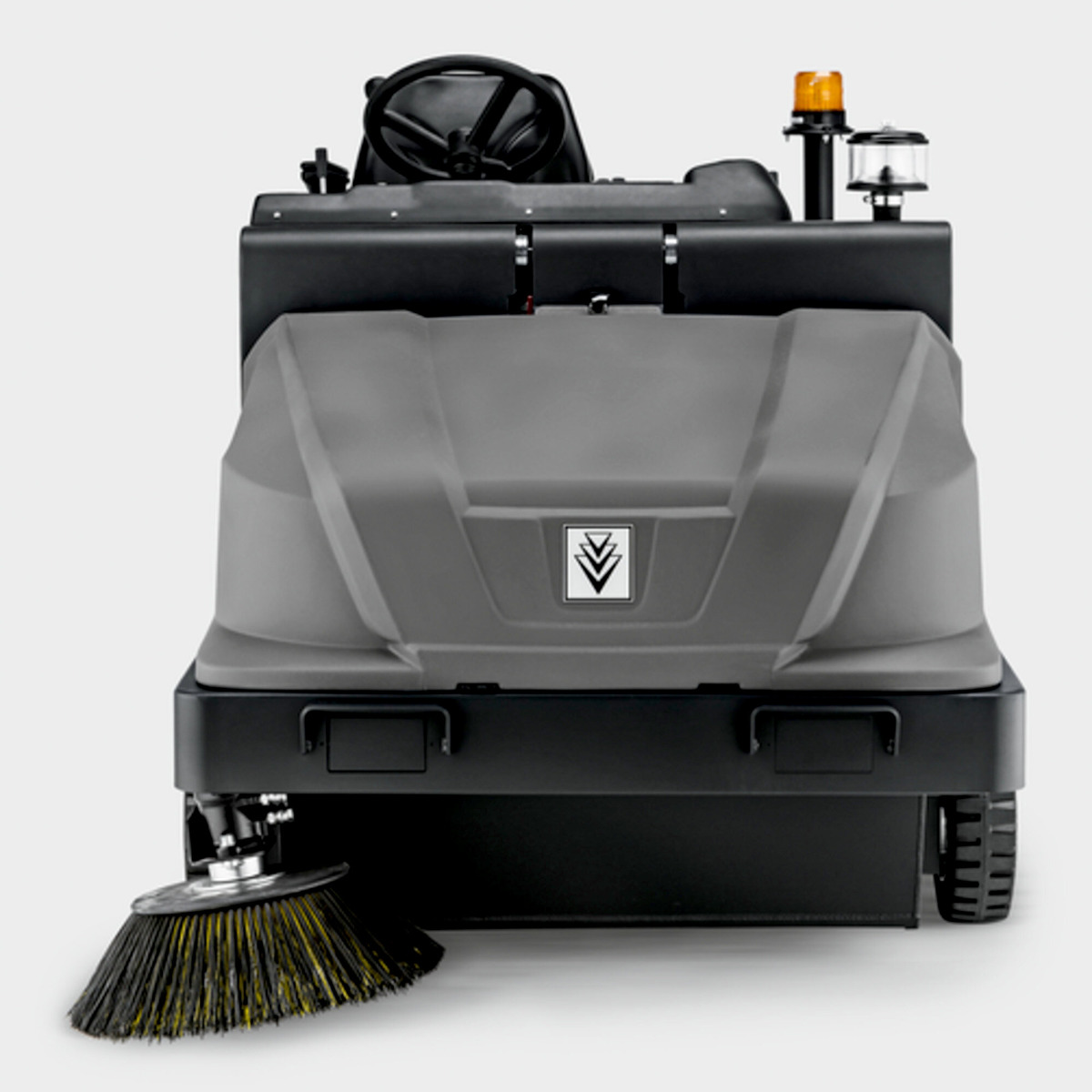

Vacuum sweeper KM 130/300 R D Classic
Diesel-powered, fully hydraulic industrial sweeper with three-wheel rear steering. For tackling tough jobs in the building material or metal-working industries, foundries and other dirt-intensive sectors.
The KM 130/300 R D industrial sweeper is ideal for low-consumption diesel operation and impresses with excellent drive performance. This robust machine is suitable for extreme jobs, e.g. in the building material and metal-working industries or foundries and in all other dirt-intensive sectors. Thanks to the dustpan principle, fine sweepings and coarse dirt are reliably vacuumed. The roller brush automatically adjusts to uneven surfaces and the innovative sweeping system reduces wear and tear to a minimum. The main roller brush can be easily changed without tools. The waste container automatically closes during transport. Two horizontally installed flat pleated filters ensure clean air under heavy dust conditions. Filter cleaning can be done with the push of a button using a highly effective dual scraper. The filter is optimally accessible and can be easily changed without the need for tools. The motor is also easy to access. The basic functions can be conveniently selected with a control thanks to the EASY Operation Concept. A cyclone filter cleans the air before it enters the motor and increases the service life considerably.
Feature and Benefits
Hydraulic rear-wheel drive with solid rubber tyres
Good manoeuvrability and control even in tight spaces. Works even on sharp surfaces without causing tyre punctures. Clear and intuitive layout and robust control elements for easy operation.

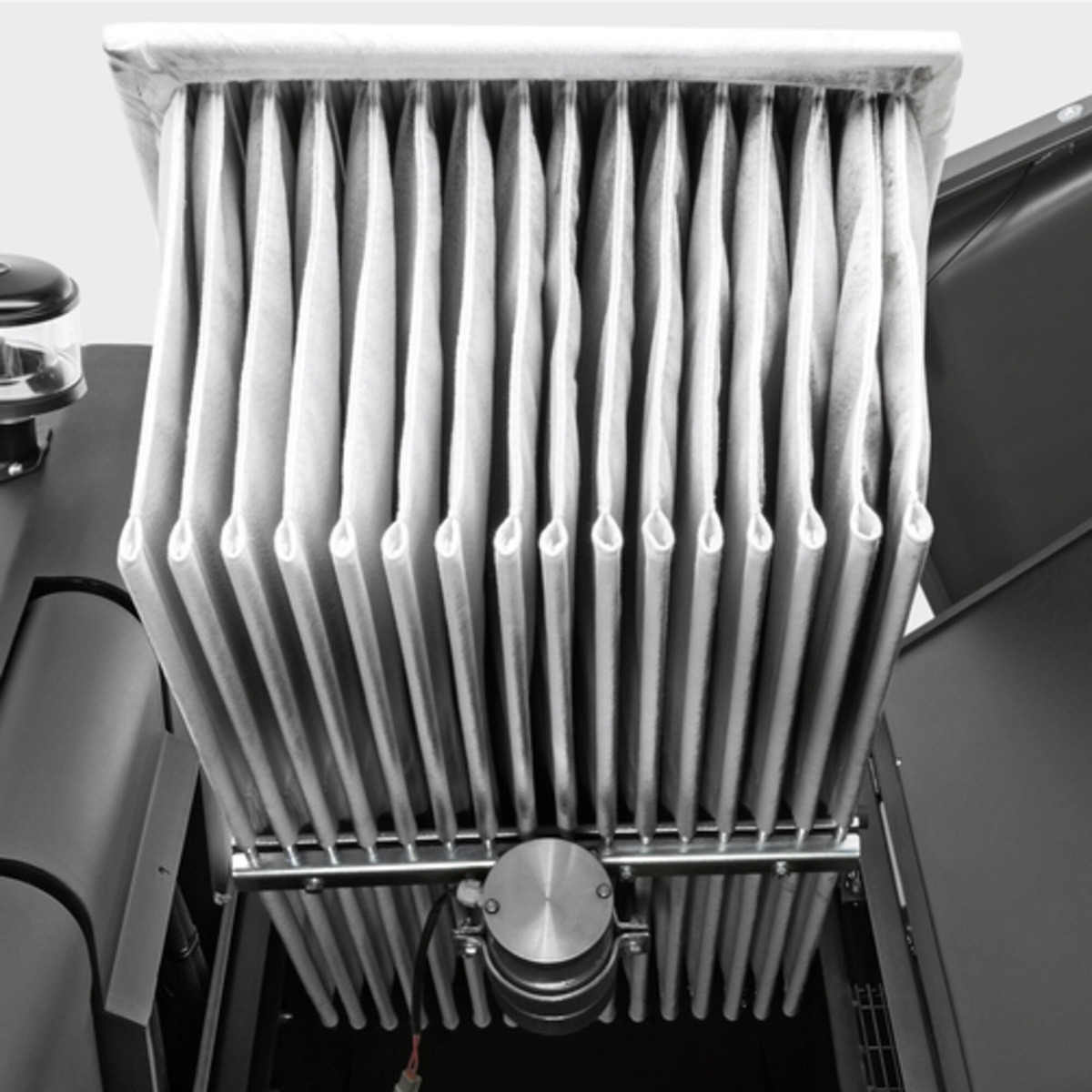

Large-area pocket filter with vibration motor
Large filter area for dust-free vacuuming. Cleaning by means of vibration motor.
Robust steel chassis with multiple corrosion protection
Can be used under tough working conditions. Durable machine and components.
Easy servicing
- Very simple technology with tried-and-tested components: fully hydraulic drive, electric rather than electronic.
- Easy access to all technical components.
Hydraulic high container emptying
- Waste can be emptied safely, easily and with no contact.
- Effortless container lift up to 1.52 m.
Dustpan principle
- Good intake of fine and coarse waste.
- Low dust dispersion.
Specifications
Technical data
Drive type | Diesel |
Traction drive | Four-stroke engine |
Motor manufacturer | Yanmar |
Drive – Power (kW) | 15.8 |
Max. area performance (m²/h) | 13000 |
Working width (mm) | 1000 |
Working width with 1 side brush (mm) | 1300 |
Working width with 2 side brushes (mm) | 1550 |
Waste container (l) | 300 |
Climbing ability (%) | 18 |
Working speed (km/h) | 10 |
Filter area (m²) | 7.8 |
Weight (with accessories) (kg) | 923 |
Weight, ready for operation (kg) | 923 |
Weight incl. packaging (kg) | 923 |
Dimensions (L × W × H) (mm) | 2040 x 1330 x 1430 |
Equipment
- Manual filter cleaning
- Adjustable main sweeper roller
- Power steering
- Suction volume regulation
- Dustpan principle
- Traction drive, forwards
- Traction drive, reverse
- Suction
- Hydr. high dump
- Outdoor use
- Elapsed time counter
- Sweeping function, can be switched off
