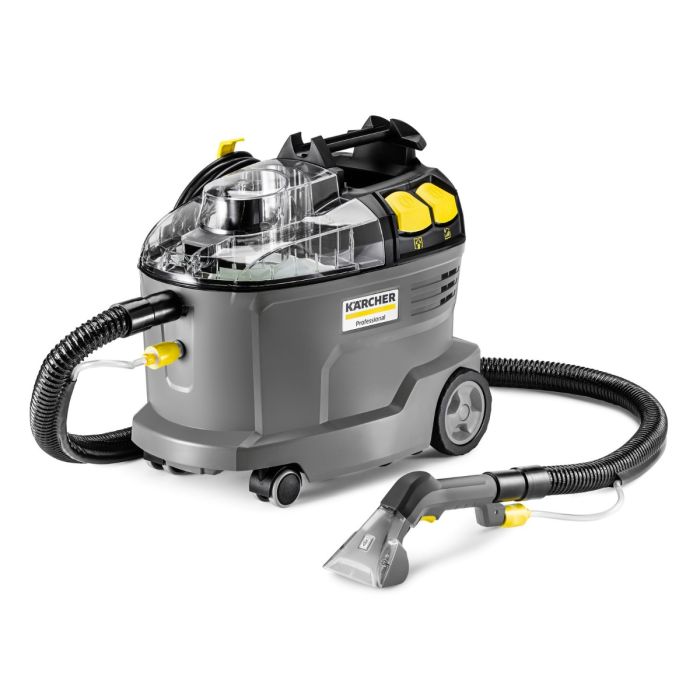

Spray-extraction cleaner Puzzi 8/1
Powerful cleaning specialist for upholstery, as well as for stain removal on textile surfaces: Puzzi 8/1 spray extraction cleaner with an ergonomic, particularly short upholstery nozzle.
Durable, compact, efficient: The Puzzi 8/1 carpet extractor from Kärcher impressively cleans upholstery and removes stains from carpet and fabric surfaces with outstanding and hygienic cleaning results and high efficiency. The compact machine sprays the cleaning solution deep into the fabric fibers, dislodging dirt and then extracting it along with the solution. This efficient suction process also ensures fast drying, allowing the cleaned fabric surfaces to be used again quickly. This feature is especially beneficial for demanding cleaning tasks in places like hotels, hospitality businesses, or vehicle interiors. The standard, extra-short upholstery nozzle for convenient, ergonomic cleaning of narrow spaces can also be used.
Feature and Benefits
Outstanding cleaning performance
Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

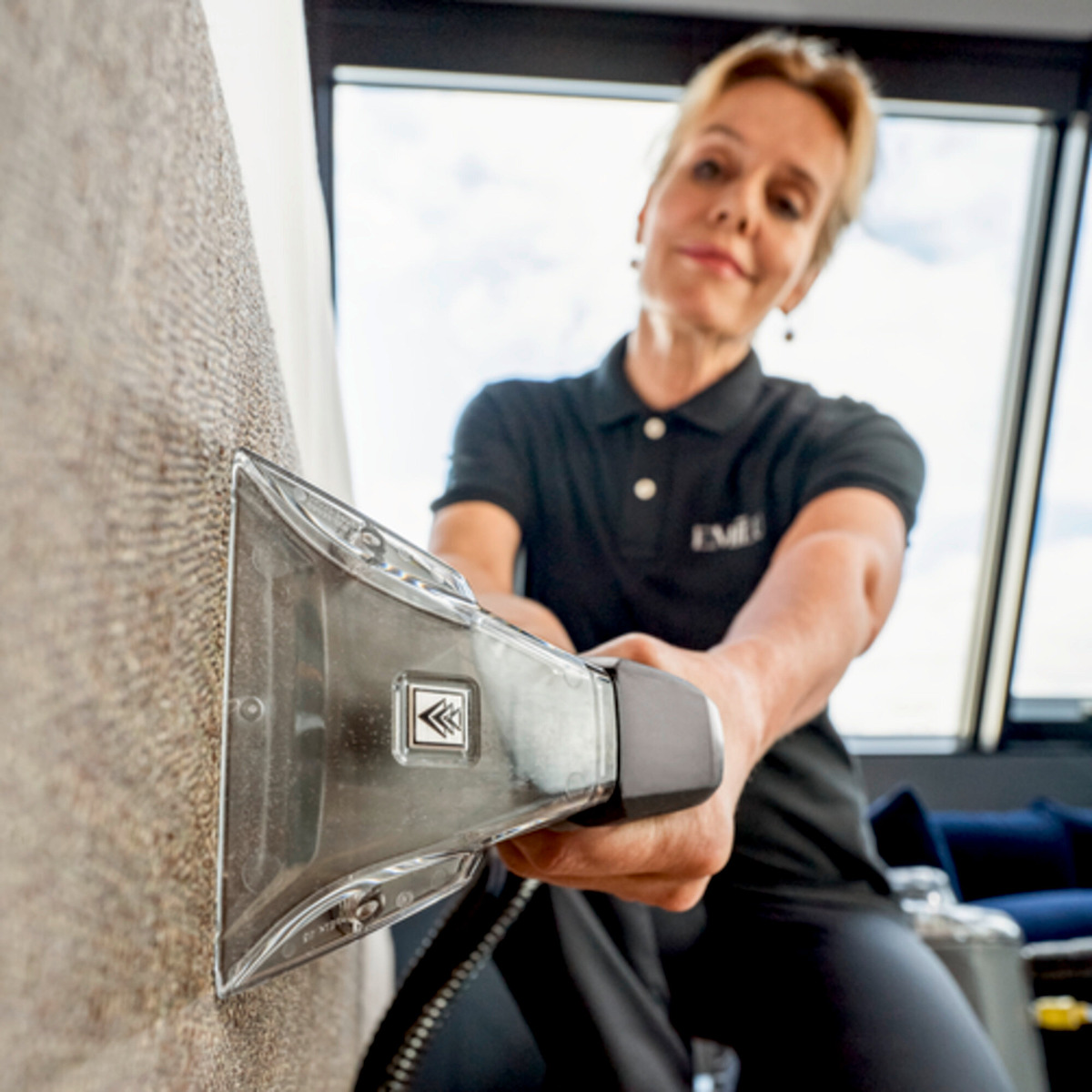

Ergonomically designed and extra-short upholstery nozzle
Handle and pressure switches can be operated with just one finger. A practical knob shape allows different holding positions. A red nozzle mouthpiece ensures efficient water consumption.
Light weight and compact, robust design
Effortless, also one-handed transport over ledges and steps. Designed for long periods of fatigue-free use. Long service life ensures high efficiency.Removable, smart 2-in-1 container
- Quick and simple to fill the fresh water tank.
- Convenient and simple to remove dirty water.
- Quick-start illustration for simple operation.
Easy to operate thanks to two large push-buttons
- No need to bend down: on/off foot switch for speed and ease of use.
- Quick 1-step method: combined spraying and vacuuming in one operation.
- 2-step method: Spray on fibres and leave to soak in – then vacuum off.
Large rear wheels and flexible 360° steering rollers
- Easy manoeuvring even on uneven surfaces.
- Particularly manoeuvrable and flexible to handle when cleaning.
Folding cable hook
- For safe storage of the power cable.
- Practical and protects the cables.
- The machine can be easily and conveniently transported and stored.
Large, open, fresh water filling opening
- Convenient, safe and quickly filled with fresh water.
- Clearly visible maximum level indicator.
- No spillage when dragging or pushing back the machine.
Integrated storage for the upholstery nozzle
- Thanks to the clip design, the upholstery nozzle is always within reach.
- Secure storage even during transport.
Specifications
Technical data
| Attribute | Value |
|---|---|
| Max. area performance (m²/h) | 12 - 18 |
| Air flow (l/s) | 71 |
| Vacuum (mbar/kPa) | 270 / 27 |
| Spray volume (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Tank of fresh water (l) | 8 |
| Tank of dirty water (l) | 7 |
| Turbine capacity (W) | 1200 |
| Pump capacity (W) | 40 |
| Supply voltage (Ph/V/Hz) | 1 / 220 - 240 / 50 - 60 |
| Weight without accessories (kg) | 8.6 |
| Weight incl. packaging (kg) | 11.4 |
| Dimensions (L x W x H) (mm) | 524 x 332 x 442 |
Equipment
- Power cable: 7.5 m
- Short upholstery nozzle with integrated handle
- Spray/suction hose: 2.5 m
- Integrated accessory storage for upholstery/crevice nozzle
- Integrated accessory storage for floor nozzle
- Removable 2-in-1 container for fresh/dirty water
- Spray/suction tube: 1 piece(s)
