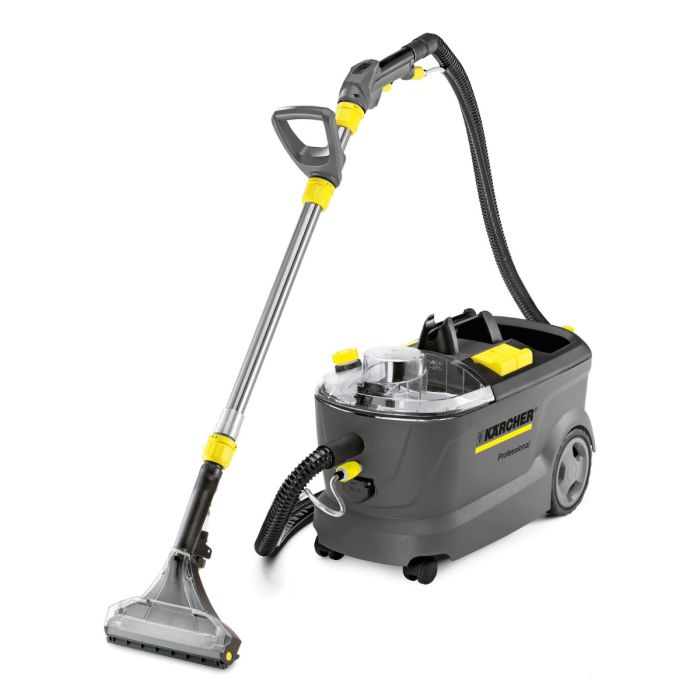

SPRAY-EXTRACTION CLEANER Puzzi 10/2 Adv

Feature and Benefits

Optimal suitability for daily use

Tool-free adjustment of the grip; Accessory/cable fastenings; quick change from floor to upholstery nozzle. Quickly adapts to different requirements. Simple, easy-to-learn operating concept.

Improved cleaning performance

With an integrated adapter for the PW 30/1 additional power brush. High cleaning performance. Integrated roller brush for raising the pile.

Storage compartment for cleaning agent tablets

With practical on-board storage compartment for tabs. For need-based dosing.
xcellent cleaning performance
  • Perfect fibre-deep cleaning of textile surfaces.
  • Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance.
  • Excellent cleaning result with visible before-and-after effect.
Professional quality: extremely robust and durable
  • Efficient pump with a long lifetime.
  • Powerful turbine with excellent back suction performance.
Comprehensive set of carpet cleaning accessories
  • Flexible suction lip for optimum suction angle and ultimate drying results.
  • 240 mm wide floor nozzle with integrated spray/suction tube.
  • Ergonomic two-handed grip for extra user comfort.

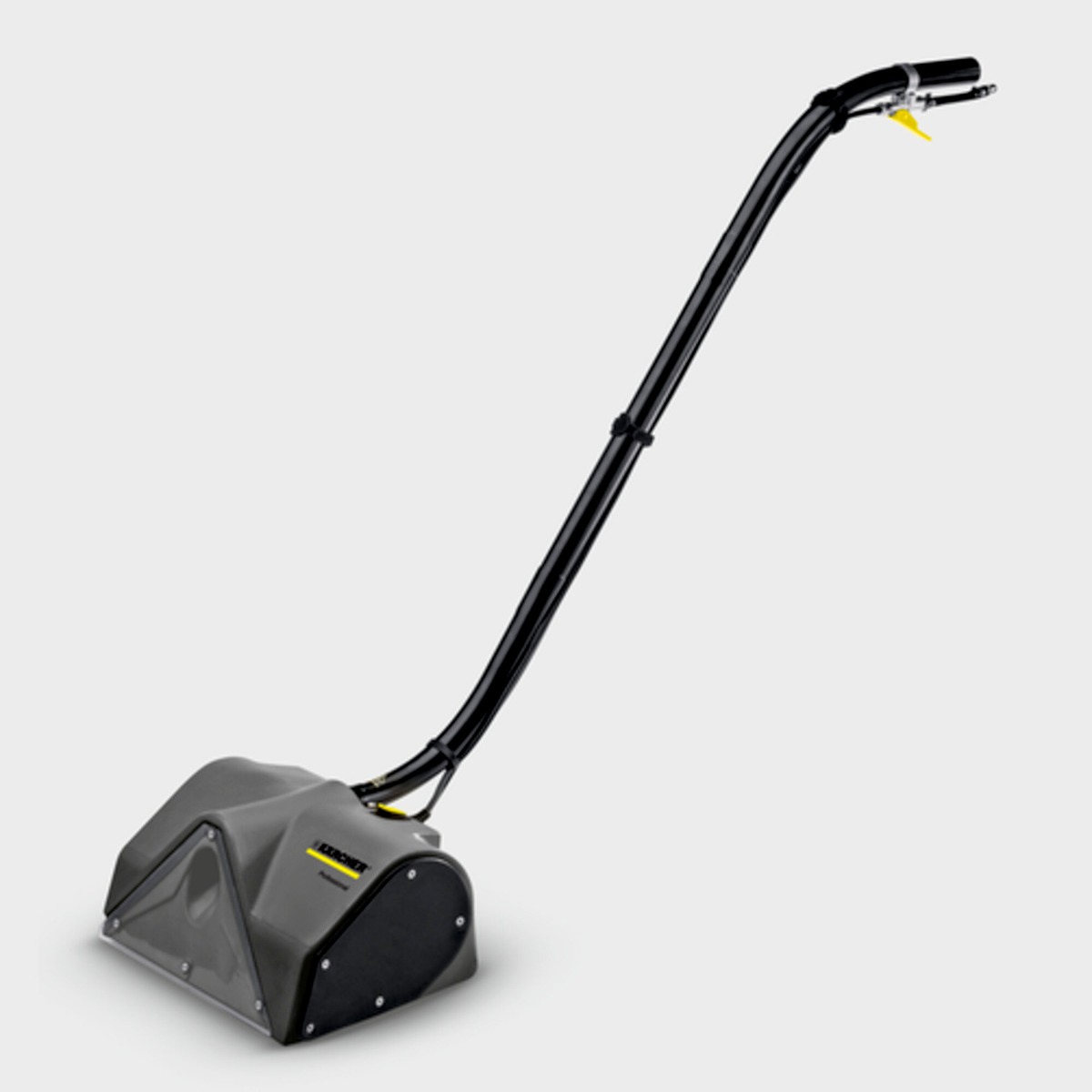

Integrated connection for PW power brush
  • Power brush ensures higher area performance.
  • Rotating roller brush for straightening carpet fibres.
  • Deeper cleaning of carpets and textile floor coverings.
Removable, smart 2-in-1 container
  • Quick and simple to fill the fresh water tank.
  • Convenient and simple to remove dirty water.
Easy to operate thanks to two large push-buttons
  • No need to bend down: on/off foot switch for speed and ease of use.
  • Quick 1-step method: combined spraying and vacuuming in one operation.
  • 2-step method: Spray on fibres and leave to soak in – then vacuum off.
Built-in defoamer dosing
  • Perfect for rinsing shampooed carpets and textile floor coverings.
  • Prevents excessive foaming in the dirty water tank.

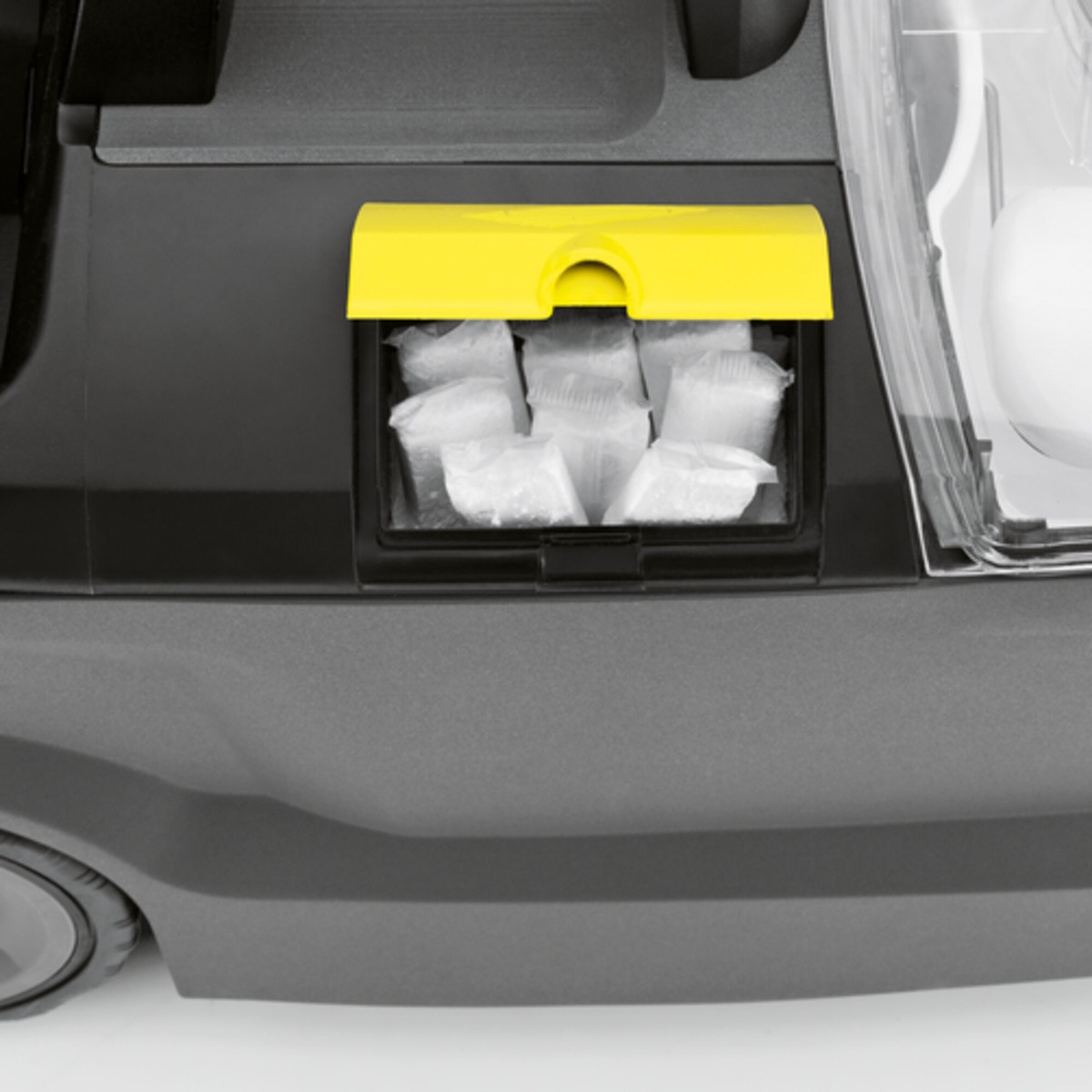

Built-in storage compartment for detergent tabs
  • Tabs are always at hand and protected from moisture.
  • Secure storage even during transport.
  • Enables need-based dosing.

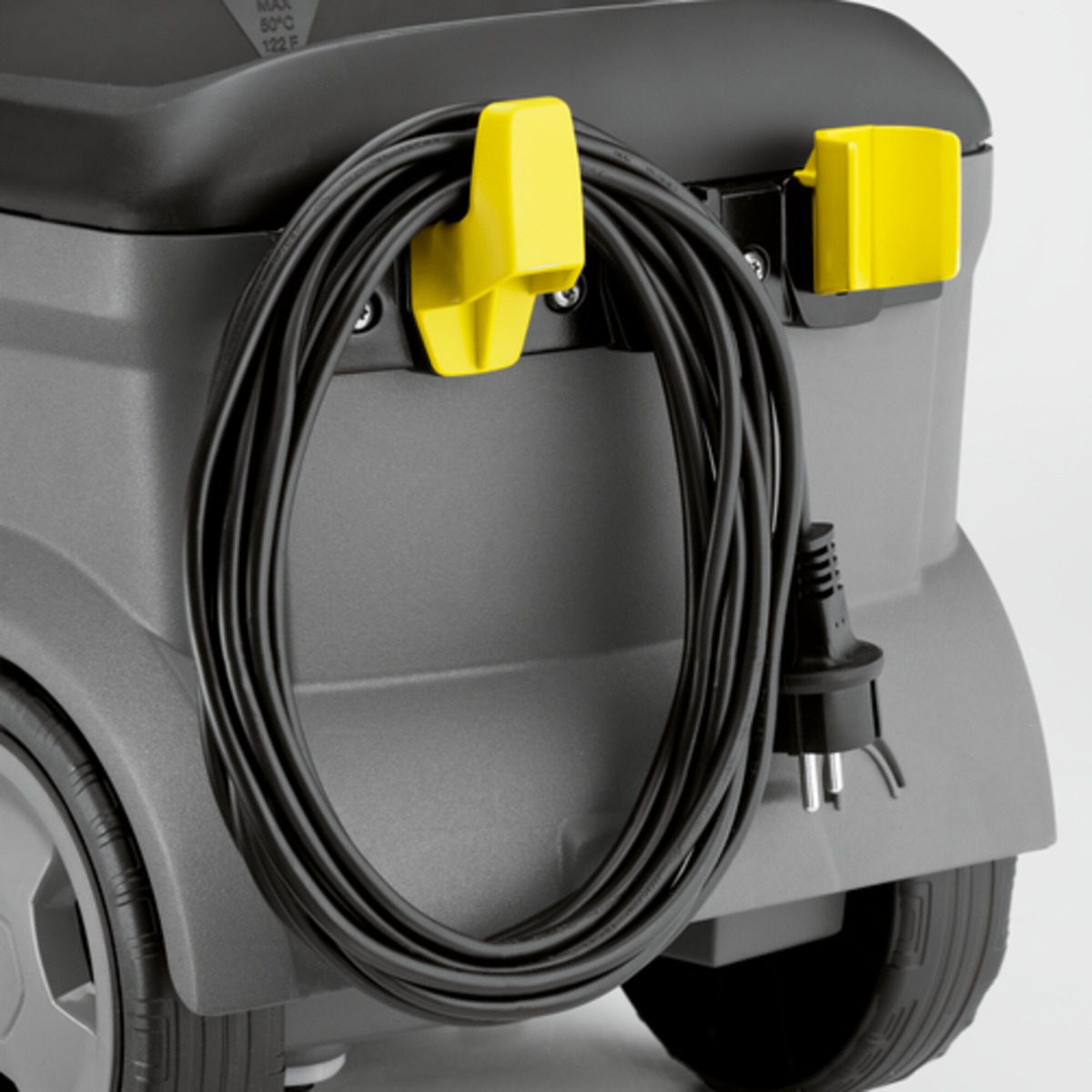

Cable hook
  • For safe storage of the power cable.
  • Practical and protects the cables.
  • The machine can be easily and conveniently transported and stored.
Integrated accessory storage
  • Integrated suction tube holder with a floor nozzle in the carrying handle.
  • Easy and comfortable to transport and store.
Specifications

Technical data

Attribute Value
Max. area performance (m²/h) 30 - 45
Air flow (l/s) 74
Vacuum (mbar/kPa) 254 / 25.4
Spray volume (l/min) 2
Spray pressure (bar) 2
Tank of fresh water (l) 10
Tank of dirty water (l) 9
Turbine capacity (W) 1250
Pump capacity (W) 80
Supply voltage (V) 220 - 240
Colour anthracite
Weight without accessories (kg) 11.5
Weight incl. packaging (kg) 16.9
Dimensions (L x W x H) (mm) 705 x 320 x 435

Equipment

  • Integrated accessory storage for upholstery/crevice nozzle
  • Nozzle mouthpiece: Floor nozzle, Yellow
  • Socket for Professional washing head: PW 30/1
  • Detergent: RM 760 tabs, 2 piece(s)
  • Spray/suction hose: 2.5 m
  • Storage compartment for cleaning agent tabs
  • Cable hook
  • Floor nozzle: 240 mm
  • Spray/suction gun
  • D-handle for spray/suction tube
  • Removable 2-in-1 container for fresh/dirty water
  • Spray/suction tube: 1 piece(s)
