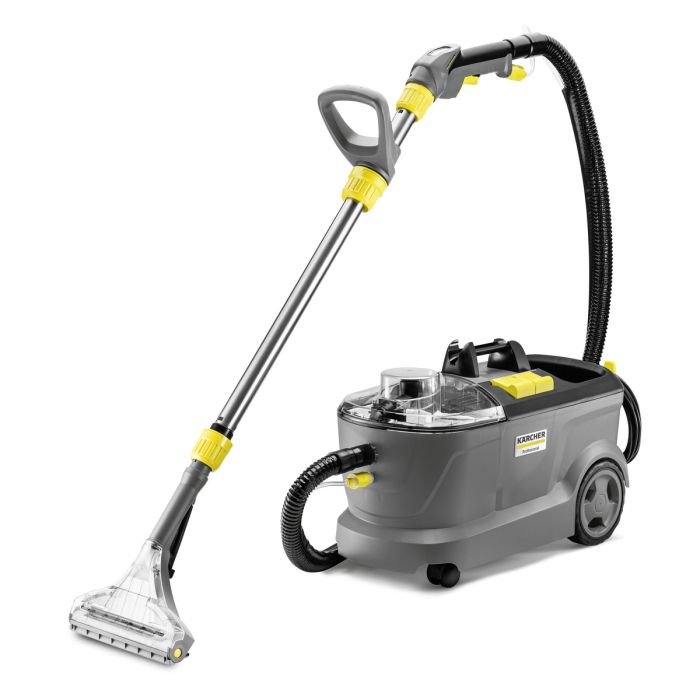

Spray-Extraction Cleaner Puzzi 10/1
Puzzi 10/1 with floor nozzle/upholstery nozzle for cleaning carpets and upholstery using spray extraction. Ideal for smaller areas. With integrated cable hook and holder for handle with trigger/suction pipe.
Puzzi 10/1 with upholstery nozzle and floor nozzle is particularly suited to hygienic and effective cleaning of small to medium surfaces. With 1 bar spray pressure, the spray extraction machine ensures gentle, deep cleaning of textiled surfaces and delivers impressive results, especially when cleaning carpets and upholstery. Thanks to the narrow floor nozzle, the machine is optimally suited for use in confined spaces. The flexible suction lips allow cluttered areas to be cleaned easily. The spray extraction machine is fitted with an integrated cable hook and a holder for a handle with trigger and suction pipe.
Feature and Benefits
Excellent cleaning performance
Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.
Professional quality: extremely robust and durable
Efficient pump with a long lifetime. Powerful turbine with excellent back suction performance. Robust design and bumper protect the machine from bumps and knocks.
Comprehensive set of carpet cleaning accessories

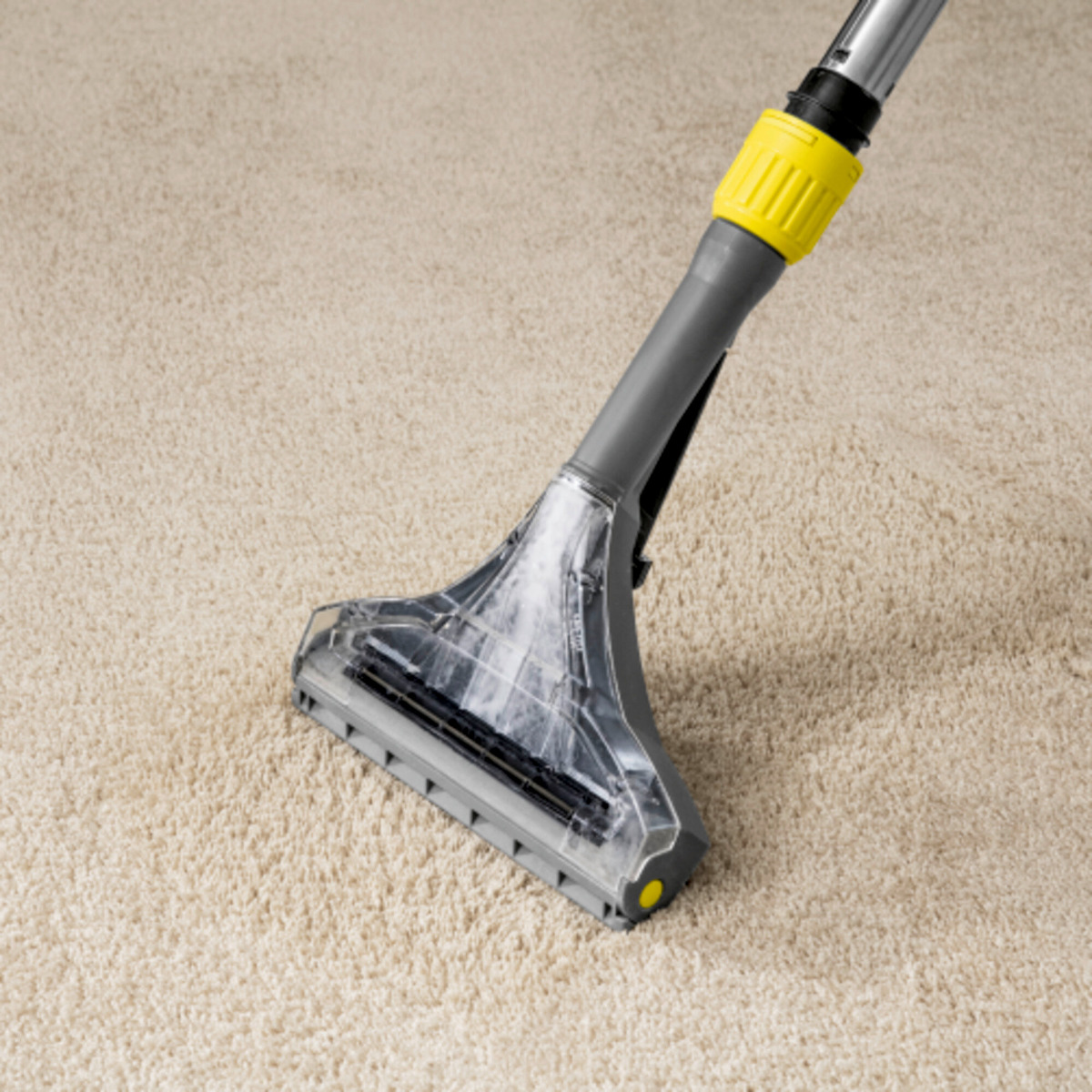

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.
Handy upholstery nozzle
- Easy yet thorough cleaning of upholstery and upholstered furniture.
- Perfect for vehicle interior cleaning.
- 110 millimetre-wide nozzle for insertion into the spray/suction gun.
Removable, smart 2-in-1 container
- Quick and simple to fill the fresh water tank.
- Convenient and simple to remove dirty water.
Easy to operate thanks to two large push-buttons
- No need to bend down: on/off foot switch for speed and ease of use.
- Quick 1-step method: combined spraying and vacuuming in one operation.
- 2-step method: Spray on fibres and leave to soak in – then vacuum off.
Large rear wheels and flexible 360° steering rollers
- Easy manoeuvring even on uneven surfaces.
- Particularly manoeuvrable and flexible to handle when cleaning.
Cable hook
- For safe storage of the power cable.
- Practical and protects the cables.
- The machine can be easily and conveniently transported and stored.
Integrated storage for the upholstery nozzle and the carpet nozzle
- Thanks to the clip design, the upholstery nozzle is always within reach.
- Integrated suction tube holder with a floor nozzle in the carrying handle.
Specifications
Technical data
| Max. area performance (m²/h) | 20 - 25 |
| Air flow (l/s) | 74 |
| Vacuum (mbar/kPa) | 254 / 25,4 |
| Spray rate (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Fresh/dirty water tank (l) | 10 / 9 |
| Turbine capacity (W) | 1250 |
| Pump capacity (W) | 40 |
| Power supply (V/Hz) | 220 - 240 / 50 - 60 |
| Cable length (m) | 7,5 |
| Colour | anthracite |
| Weight without accessories (kg) | 10,5 |
| Weight incl. packaging (kg) | 16,1 |
| Dimensions (L × W × H) (mm) | 690 x 325 x 440 |
