High-pressure cleaners HDS 8/18-4 C
The three-phase HDS 8/18-4 C is the most powerful hot water high-pressure cleaner in the Compact class and features a 4-pole, water-cooled electric motor and eco!efficiency mode.
The most powerful 3-phase hot water high-pressure cleaner in the compact class: the HDS 8/18-4 C with eco!efficiency and steam stage impresses with its ergonomics and user-friendliness. Its powerful 4-pole motor is water-cooled. A robust axial pump with three ceramic pistons builds up high pressure. The EASY!Force Advanced high-pressure gun with servo control for easy adjustment of pressure and water flow, patented nozzle technology and EASY!Lock quick-release fasteners makes for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The maintenance-friendly HDS 8/18-4 C is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability. There are integrated storage possibilities for accessories.
Feature and Benefits
Economic efficiency
eco!efficiency mode – economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO₂ emissions by 20%. Precise detergent dosing unit with rinse function.
User-friendliness

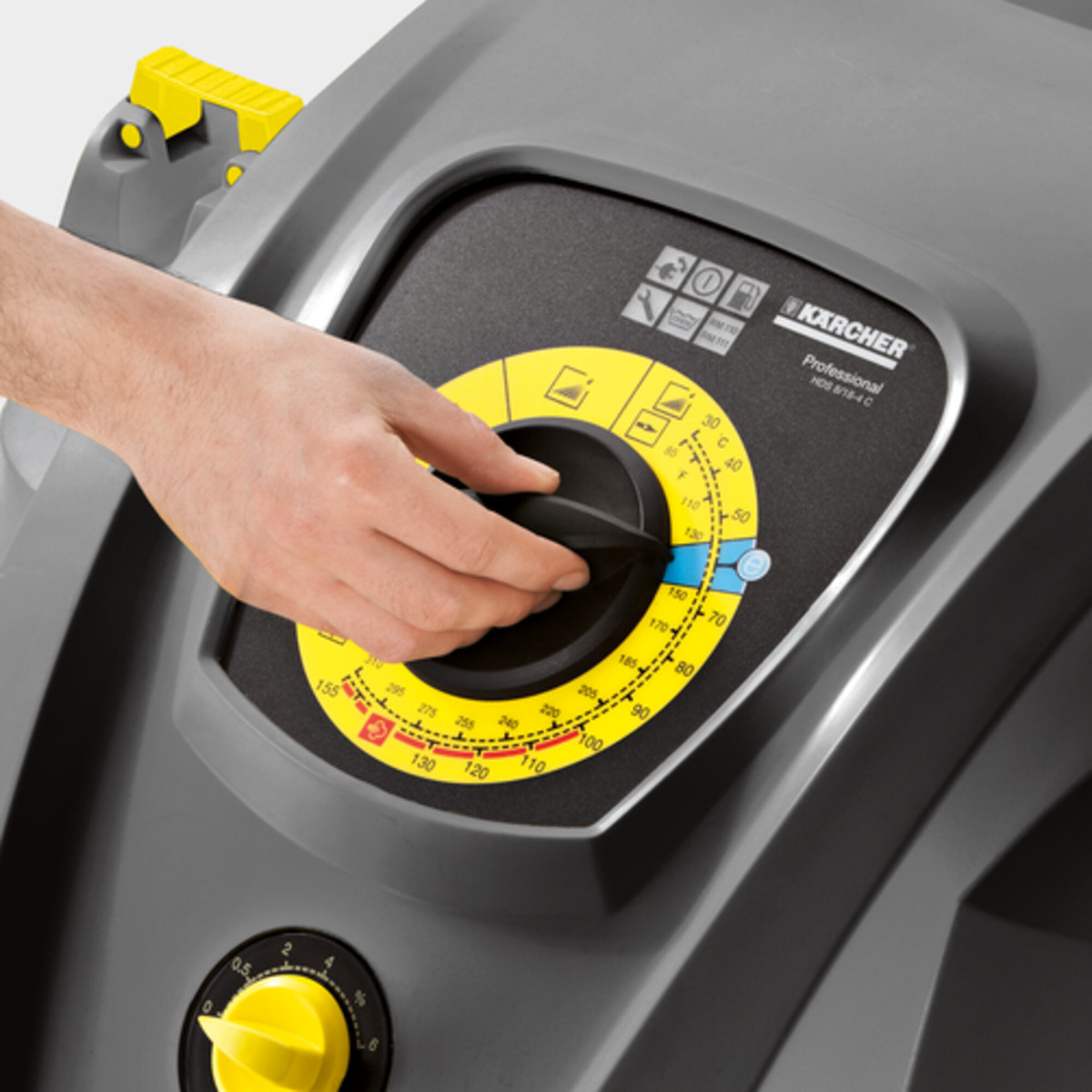

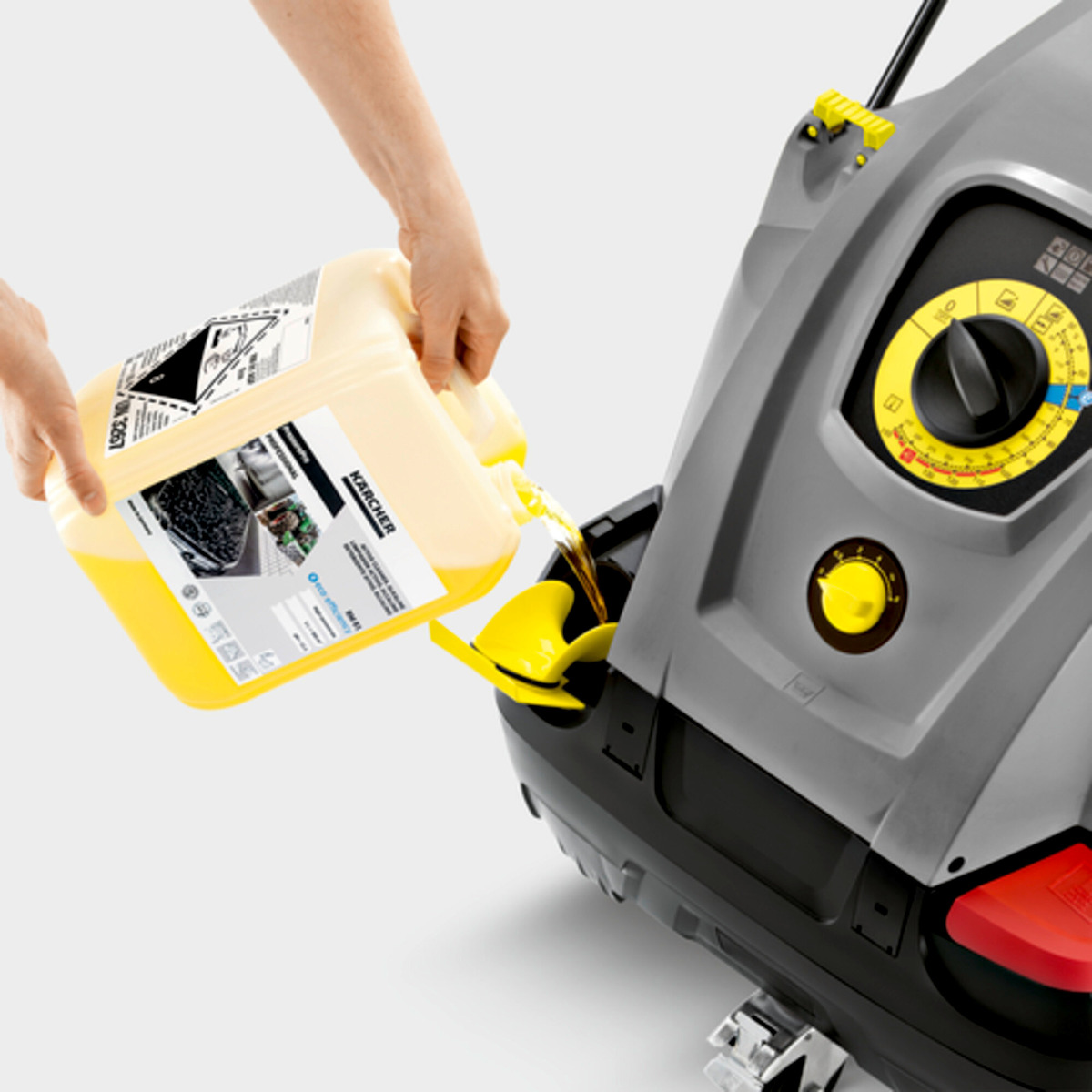

Intuitive operation thanks to the large single-button selector switch. Large tank opening with filling chute. System care bottle can be changed from the outside for added convenience.
Storage

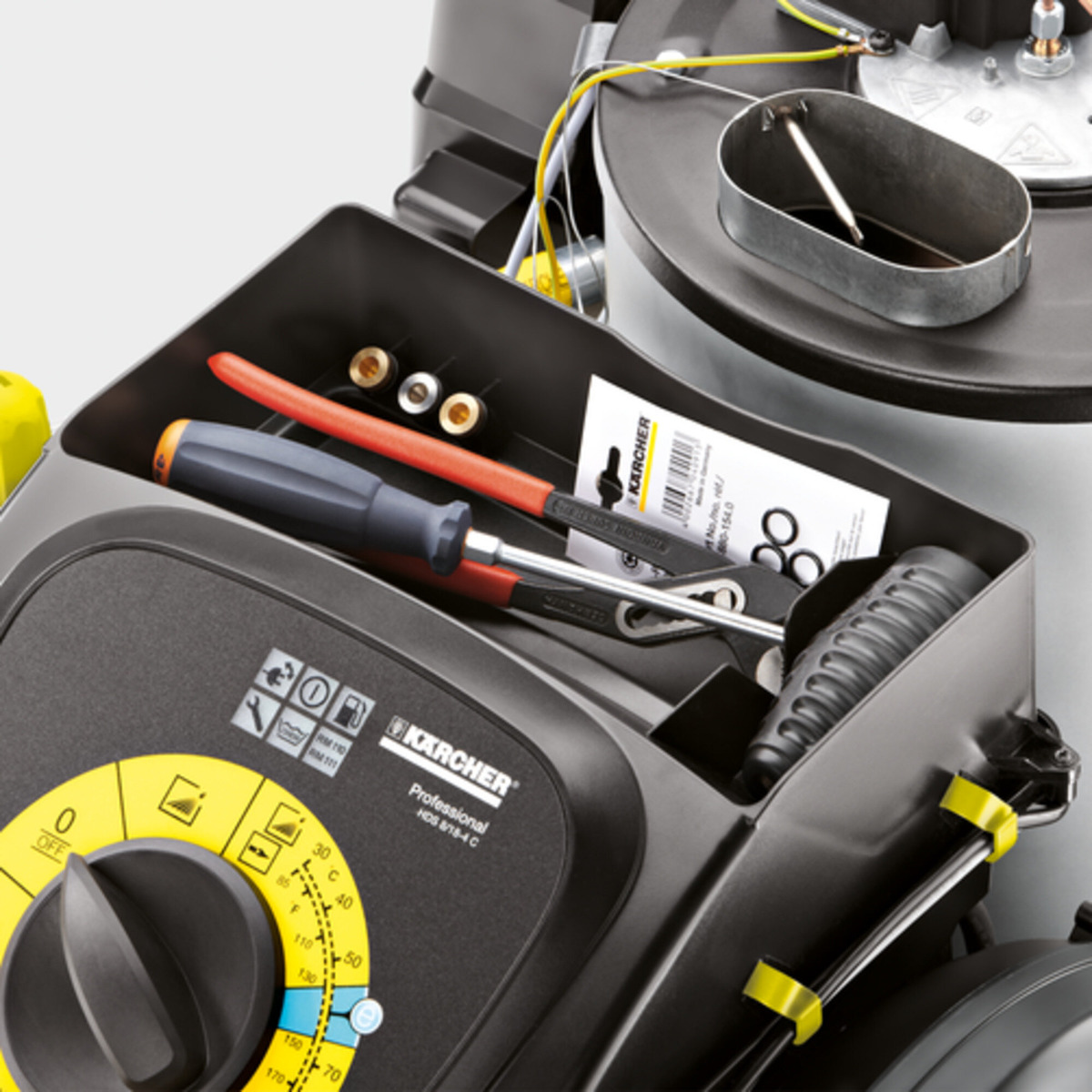

Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cable and high-pressure hose. Integrated lance holder for transport.
Reliability
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
- Large water filter protects pump against damage.
- Water softening system to protect the heating coil against calcification damage.
Portability
- "Jogger" design with large wheels and steering roller.
- Large integrated handles in the chassis.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Specifications
Technical data
| Power supply (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 300 - 800 |
| Working pressure (bar/MPa) | 30 - 180 / 3 - 18 |
| Max. pressure (bar) | 220 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 6 |
| Consumption of fuel oil at full load (kg/h) | 5,2 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 4,2 |
| Power cable (m) | 5 |
| Nozzle size | 025 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 119,4 |
| Weight incl. packaging (kg) | 131,2 |
| Dimensions (L × W × H) (mm) | 1066 x 650 x 920 |
Equipment
- Spray gun: EASY!Force Advanced
- Spray lance: 1050 mm
- Power nozzle
- Servo Control
- High-pressure hose length: 10 m
- High-pressure hose specification: DN 6, 250 bar
- Soft Damping System (SDS)
- Pressure cut-off
- Integrated fuel and detergent tank
