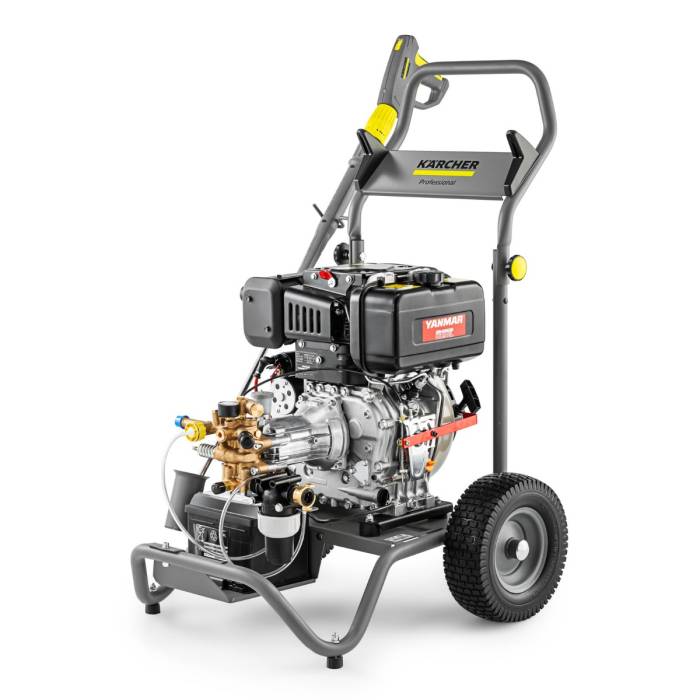

HIGH PRESSURE CLEANER HD 9/23 De

The HD 9/23 De diesel-powered is a mobile cold water pressure washer with 230 bar pressure for high cleaning performance.

Ideal wherever difficult external conditions and demanding cleaning tasks meet: the HD 9/23 De diesel-powered, cold water pressure washer with its resilient Yanmar diesel engine generates the electricity it needs itself. The required water can be sucked directly from lakes or ponds, allowing you to work in areas with poor infrastructure. The machine delivers 230 bar water pressure and therefore measures up to any task. Its ergonomic frame concept and the puncture-proof wheels guarantee maximum mobility, while the robust basic frame can withstand heavy-duty use. The EASY! Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, also the EASY!Lock quick-release fasteners, making set-up and dismantling five times faster than with conventional screw connections. A large water filter and a thermostat valve are built in to protect the pump. The HD 9/23 De impresses with its simple operating concept, storage options for accessories, and practical expansion options. For example, an attachment kit for a hose reel and an extra cage frame with eyelets for loading onto a crane are also available as optional extras.

Feature and Benefits

Maximum independence

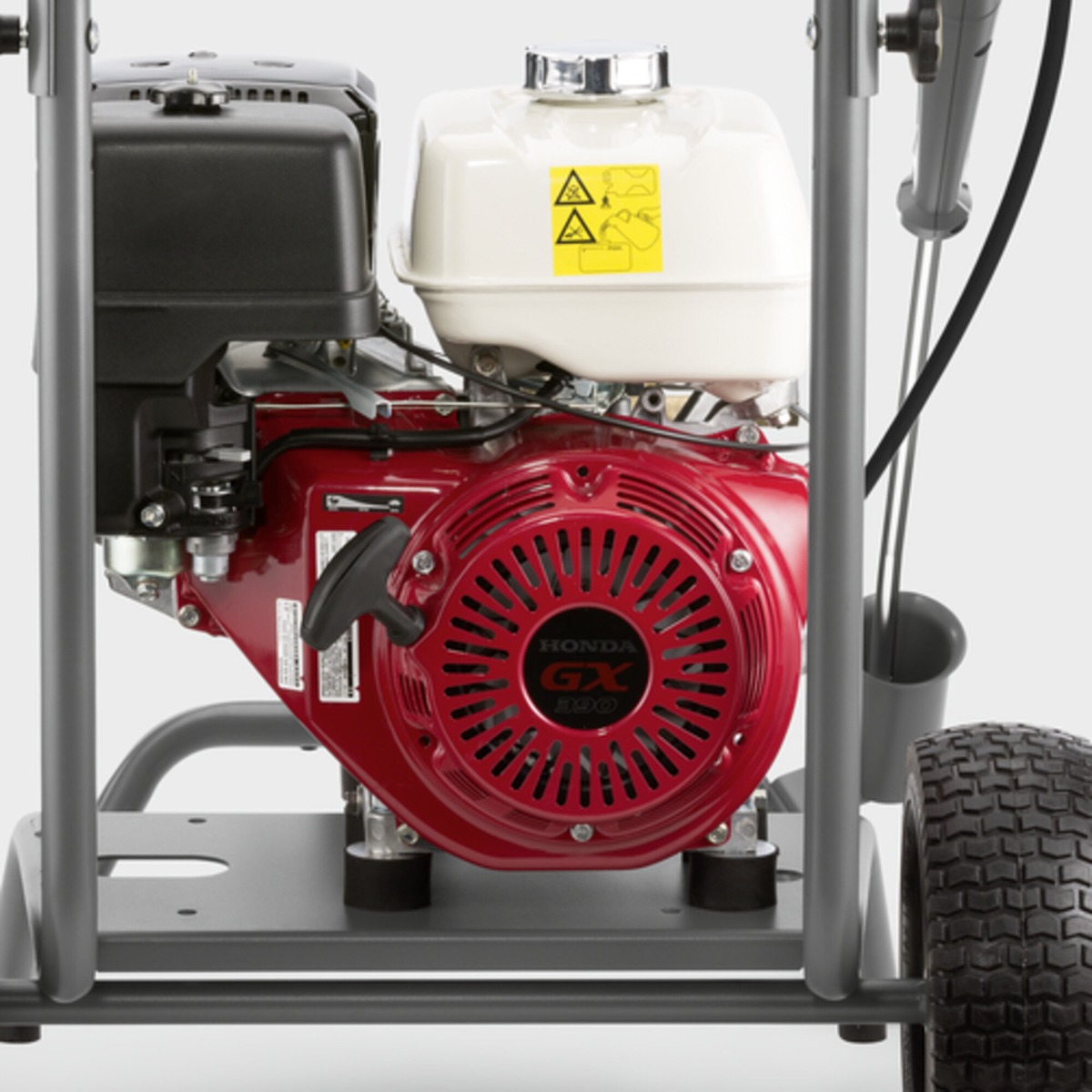

Fitted with a reliable Honda or Yanmar motor for use without an external power supply. Can suck up water – e.g. from lakes or ponds – and use it for cleaning.

Optimum ease of use

The ergonomic frame concept makes transport on uneven ground easier. Storage options for all accessory parts directly on the machine. Puncture-proof wheels guarantee permanent high mobility.

Highly versatile

Optional cage frame with eyelets for crane loading and reliable protection of the machines. A hose reel attachment kit for shorter set-up is available as an optional extra. Portable version with robust pipe frame specially designed for painters and plasterers (HD 728 B).
For the toughest jobs
  • Robust basic frame for daily use in tough conditions.
  • Large water filter to protect the pump.
  • Thermostat valve to protect the pump from overheating in recirculation mode.
Specifications

Technical data

Flow rate (l/h) 400 - 930
Working pressure (bar/MPa) 40 - up to 230 / 4 - up to 23
Max. pressure (bar/MPa) 270 / 27
Inlet temperature (°C) 60
Water inlet 1″
Drive type Diesel
Motor manufacturer Yanmar
Motor type L 100 V
Number of users at one time 1
Portability Mobile
Colour anthracite
Weight (with accessories) (kg) 112,5
Weight incl. packaging (kg) 115,5
Dimensions (L × W × H) (mm) 866 x 722 x 1146

Equipment

  • Trigger gun: EASY!Force Advanced
  • High-pressure hose: 15 m, Premium quality, ID 8, 315 bar
  • Power nozzle
  • Servo Control
  • Infinitely variable pressure and water flow control on the unit
  • Electric starter
